TM101DDHG01 TIANMA 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM101DDHG01 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver2.0 which was released out on 6 14 2016, TM101DDHG01 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×5.4(D) mm, viewing area size of 225.52(W)×128.10(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 202g (Typ.). As a TN, Normally White, Transmissive LCM product, TM101DDHG01 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/75/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM101DDHG01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM101DDHG01
Brand	TIANMA
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)×600 [WSVGA]
Configuration	RGB Vertical Stripe
Active Area	222.72(H)×125.28(V) mm
Outline Dim.	235(H)×143(V) ×5.4(D) mm
Bezel Area	225.52(H)×128.10(V) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	7/9 (Typ.)(Tr/Td)
Viewing Angle	80/80/75/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 47% NTSC
Light Source	WLED , 30K hours , With LED Driver
Weight	202g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

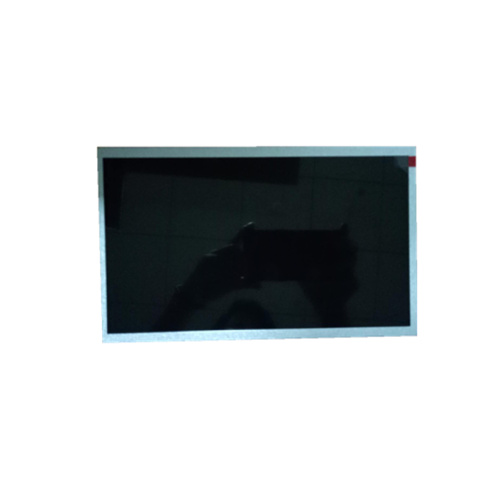

Product Picture:

TM101DDHG01
