TM097TDH02-41 AVIC 9.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Shanghai AVIC Optoelectronics Co. Ltd. (hereafter called AVIC) TM097TDH02-41 is a 9.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. AVIC TFT-LCD is a 9.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Final Ver1.0 which was released out on 3 8 2017, TM097TDH02-41 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 196.608(W)×147.456(H) mm, outline size of 210.21(W)×166.3(H)×5.85(D) mm, viewing area size of 200.91(W)×152.27(H) mm, with surface treament of Hard coating, net weight of 200g (Typ.). As a TN, Normally White, Transmissive LCM product, TM097TDH02-41 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 3 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM097TDH02-41 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM097TDH02-41 |
|
Panel Brand |
AVIC |
|
Panel Size |
9.7" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×768 , XGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
196.608(W)×147.456(H) mm |
|
Bezel Opening |
200.91(W)×152.27(H) mm |
|
Outline Size |
210.21(W)×166.3(H) ×5.85(D) mm |
|
Surface |
Hard coating |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/60/70/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
3 o'clock |
|
Response Time |
20 (Typ.)(Tr+Td) |
|
Display Colors |
262K 50% NTSC |
|
Lamp Type |
6S6P WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
200g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 30 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

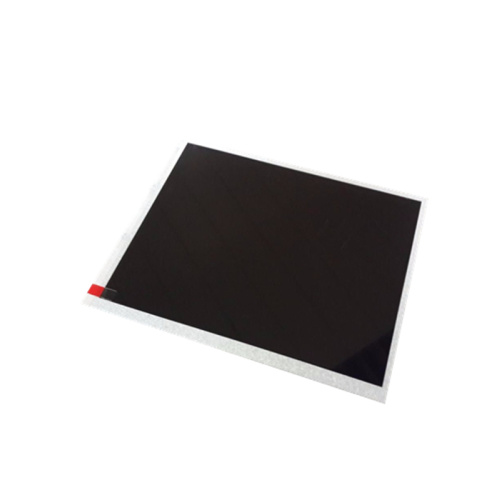

Product Picture:
