TM097TBHG02 TIANMA 9.7 inch TFT-LCD

TM097TBHG02 is a 9.7 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch. Tianma TFT-LCD is a 9.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM097TBHG02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 196.608(W)×147.456(H) mm, outline size of 210.2(W)×166.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Typ.). As a TN, Normally White, Transmissive LCM product, TM097TBHG02 can provides 280 cd/m² display brightness 500:1 transimissive contrast ratio, 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 3 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM097TBHG02 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

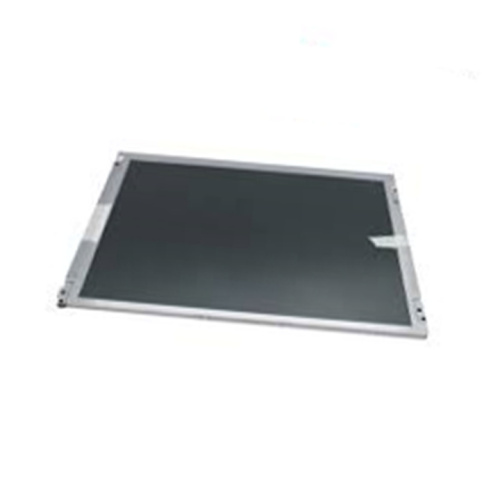

Product Picture:
