TM090RDSG01 TIANMA 9.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM090RDSG01 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 9.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 6 28 2016, TM090RDSG01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198(W)×111.696(H) mm, outline size of 211.1(W)×126.5(H)×5.9(D) mm, viewing area size of 201.0(W)×114.7(H) mm, with surface treament of Antiglare, net weight of 285g (Typ.). As a TN, Normally White, Transmissive LCM product, TM090RDSG01 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM090RDSG01 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm FPC with power supply voltage of 3.3/10.65/20/-7V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM090RDSG01
Panel Brand	TIANMA
Panel Size	9.0"
Resolution	800(RGB)×480 , WVGA
Display Area	198(W)×111.696(H) mm
Outline Size	211.1(W)×126.5(H) ×5.9(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Colors	16.7M 50% NTSC
Frequency	60Hz
Weight	285g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	201.0(W)×114.7(H) mm
Surface	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	3S8P WLED , 20K hours , Without Driver
Touch Screen	Without
Signal Interface	Parallel RGB (1 ch, 8-bit) FPC
Input Voltage	3.3/10.65/20/-7V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

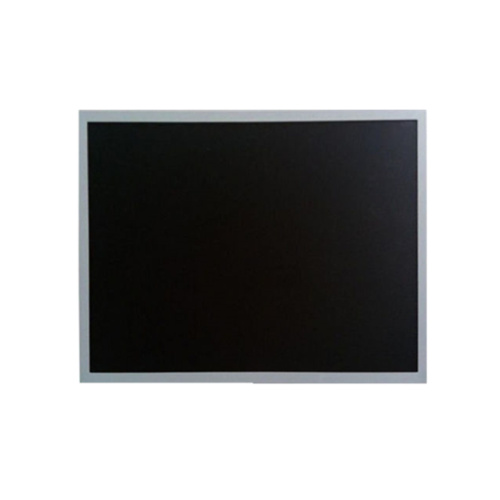

Product Picture:

TM090RDSG01
