TM080JDKP96 TIANMA 8.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM080JDKP96 is a 8.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 8.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM080JDKP96 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Hard coating, net weight of 183g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TM080JDKP96 can provides 800 cd/m² display brightness 1300:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM080JDKP96 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM080JDKP96
Panel Brand	TIANMA
Panel Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×720 , WXGA
Pixel Format	RGB Vertical Stripe
Display Area	176.64(W)×99.36(H) mm
Bezel Opening	179.64(W)×102.36(H) mm
Outline Size	192.8(W)×116.9(H) mm
Surface	Hard coating
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 74% NTSC
Lamp Type	6S3P WLED , 30K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	183g (Typ.)
Signal Interface	LVDS (1 ch, 8-bit) , 30 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²)

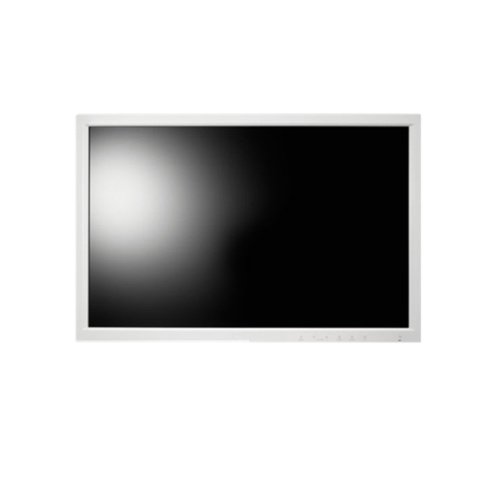

Product Picture:

TM080JDKP96
