TM080JDHP98 TIANMA 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM080JDHP98 is a 8.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller,Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver.V02 which was released out on 12 6 2017, TM080JDHP98 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H) mm, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM080JDHP98 can provides 800 cd/m² display brightness 900:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 7S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM080JDHP98 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM080JDHP98 |
|
Brand |
TIANMA |
|
Diagonal Size |
8.0 inch |
|
Pixel Format |
1280(RGB)×720 [WXGA] |
|
Active Area |
176.64(H)×99.36(V) mm |
|
Luminance |
800 cd/m² (Typ.) |
|
View Direction |
Symmetry |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Support Color |
16.7M 73% NTSC |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
192.8(H)×116.9(V) mm |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
|
Response Time |
35 (Typ.)(Tr+Td) |
|
Operating Mode |
SFT, Normally Black, Transmissive |
|
Light Source |
WLED [7S3P] , 30K hours , W/O Driver |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 8-bit) 30 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |

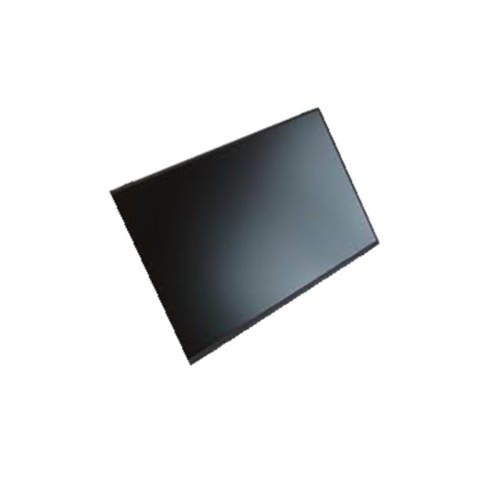

Product Picture:
