TM080VDSP03 TIANMA 8.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM080VDSP03 is a 8.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without touch screen. Tianma TFT-LCD is a 8.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.2 which was released out on 8 7 2015, TM080VDSP03 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 107.64(W)×172.224(H) mm, outline size of 114.58(W)×184.09(H)×3.95(D) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM080VDSP03 can provides 390 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 7S3P WLED as it's backlight systerm which was placed as Edge light type. It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM080VDSP03
Brand	TIANMA
Diagonal Size	8.0 inch
Pixel Format	1200(RGB)×1920 [WUXGA]
Active Area	107.64(H)×172.224(V) mm
Luminance	390 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	16.7M 60% NTSC
Weight	TBD
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	114.58(H)×184.09(V) ×3.95(D) mm
Treatment	Hard coating
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	SFT, Normally Black, Transmissive
Light Source	WLED [7S3P]
Touch Panel	Without
Power Supply	3.3V (Typ.)(VCI)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -15 ~ 70 °C

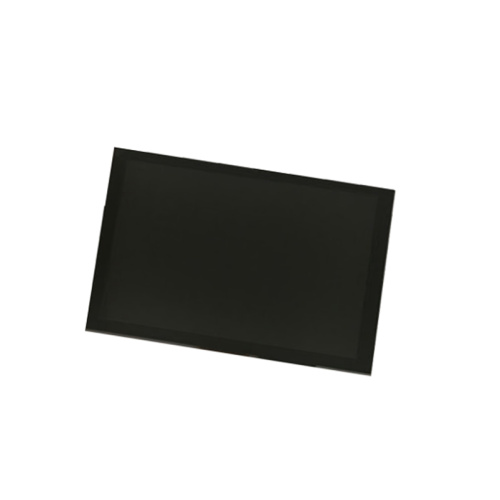

Product Picture:

TM080VDSP03
