TM080JDHP95 TIANMA 8.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM080JDHP95 is a 8.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 8.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM080JDHP95 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H) mm, net weight of 220g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM080JDHP95 can provides 690 cd/m² display brightness 900:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 7S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM080JDHP95 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM080JDHP95
Brand	TIANMA
Diagonal Size	8.0 inch
Pixel Format	1280(RGB)×720 [WXGA]
Active Area	176.64(H)×99.36(V) mm
Luminance	690 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Support Color	16.7M 73% NTSC
Weight	220g (Typ.)
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	192.8(H)×116.9(V) mm
Contrast Ratio	900:1 (Typ.) (TM)
Response Time	35 (Typ.)(Tr+Td)
Operating Mode	SFT, Normally Black, Transmissive
Light Source	WLED [7S3P] , 30K hours , W/O Driver
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) 30 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²)

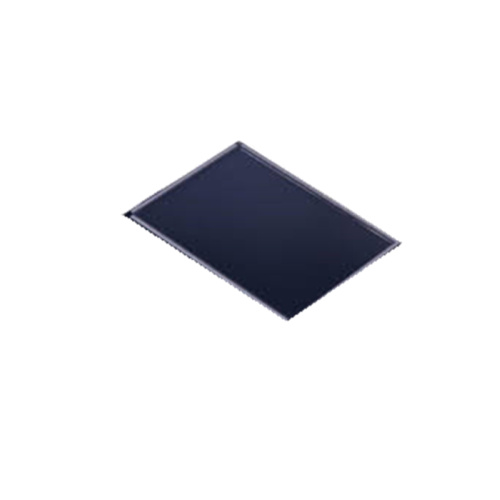

Product Picture:

TM080JDHP95
