TM070DVHG01-41 TIANMA 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM070DVHG01-41 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. Tianma TFT-LCD is a 7.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver1.0 which was released out on 1 15 2019, TM070DVHG01-41 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 171.5(W)×110.3(H)×5.3(D) mm. As a TN, Normally White, Transmissive LCM product, TM070DVHG01-41 can provides 270 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM070DVHG01-41 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM070DVHG01-41
Panel Brand	TIANMA
Panel Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600 , WSVGA
Pixel Format	RGB Vertical Stripe
Display Area	153.6(W)×90(H) mm
Outline Size	171.5(W)×110.3(H) ×5.3(D) mm
Brightness	270 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Display Colors	16.7M 50% NTSC
Lamp Type	3S6P WLED , 20K hours , Without Driver
Frequency	60Hz
Touch Screen	PCAP
Signal Interface	LVDS (1 ch, 8-bit) , 40 pins FPC
Input Voltage	3.3/11.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Product Picture:

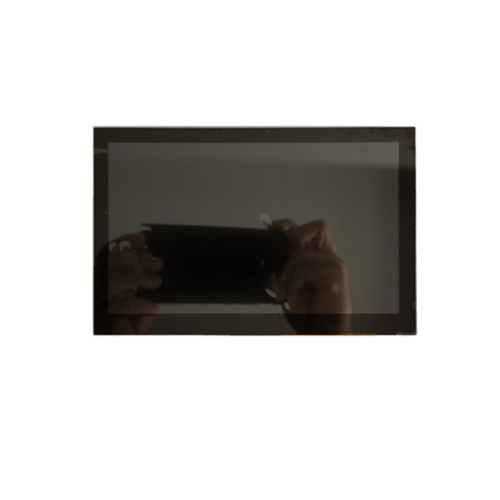

TM070DVHG01-41
