TM070RDH13-40 TIANMA 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM070RDH13-40 is a 7.0inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver,without touch screen. Tianma TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM070RDH13-40 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, viewing area size of 157.08(W)×89.39(H) mm, with surface treament of Antiglare, net weight of 160g. As a TN, Normally White, Transmissive LCM product, TM070RDH13-40 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM070RDH13-40 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50pins FPC with power supply voltage of 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM070RDH13-40 |
|
Panel Brand |
TIANMA |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480 , WVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
154.08(W)×85.92(H) mm |
|
Bezel Opening |
157.08(W)×89.39(H) mm |
|
Outline Size |
164.9(W)×100(H) ×6(D) mm |
|
Surface |
Antiglare |
|
Brightness |
300 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
12 o'clock |
|
Response Time |
20 (Typ.)(Tr+Td) |
|
Display Colors |
262K/16.7M 50% NTSC |
|
Lamp Type |
3S6P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
160g |
|
Signal Interface |
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
|
Input Voltage |
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

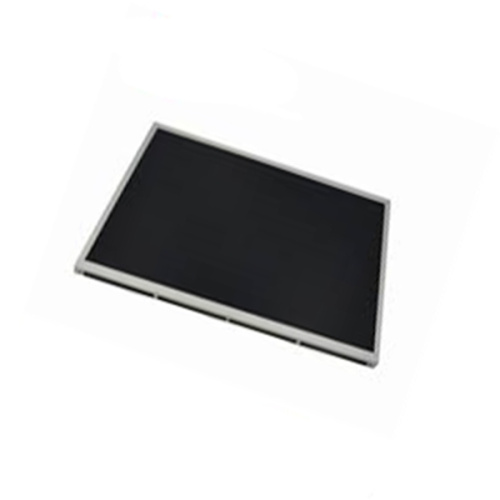

Product Picture:
