TM070JDHG34 TIANMA 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM070JDHG34 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, without touch screen. Tianma TFT-LCD is a 7.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.0 which was released out on 4 2 2018, TM070JDHG34 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 161(W)×107(H) mm, with surface treament of Hard coating (3H), net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM070JDHG34 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM070JDHG34 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM070JDHG34 |
|
Brand |
TIANMA |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1280(RGB)×800 [WXGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
149.76(H)×93.6(V) mm |
|
Outline Dim. |
161(H)×107(V) mm |
|
Treatment |
Hard coating (3H) |
|
Luminance |
600 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
35 (Typ.)(Tr+Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Operating Mode |
SFT, Normally Black, Transmissive |
|
Support Color |
262K/16.7M 50% NTSC |
|
Light Source |
WLED [6S5P] , 50K hours , With LED Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

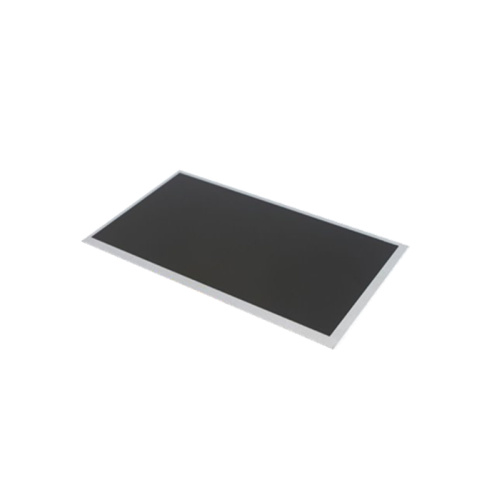

Product Picture:
