TM070DDHG03-40 TIANMA 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM070DDHG03-40 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 7.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver1.2 which was released out on 4 27 2016, TM070DDHG03-40 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.75(W)×105.39(H)×3.7(D) mm, viewing area size of 156.2(W)×92.6(H) mm, with surface treament of Antiglare, net weight of 112g (Typ.). As a TN, Normally White, Transmissive LCM product, TM070DDHG03-40 can provides 320 cd/m² display brightness 1000:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 51% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM070DDHG03-40 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM070DDHG03-40 |
|
Brand |
TIANMA |
|
Diagonal Size |
7.0 inch |
|
Pixel Format |
1024(RGB)×600 [WSVGA] |
|
Active Area |
153.6(H)×90(V) mm |
|
Bezel Area |
156.2(H)×92.6(V) mm |
|
Luminance |
320 cd/m² (Typ.) |
|
Viewing Angle |
75/75/70/75 (Typ.)(CR≥10) |
|
Support Color |
262K/16.7M 51% NTSC |
|
Weight |
112g (Typ.) |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
165.75(H)×105.39(V) ×3.7(D) mm |
|
Treatment |
Antiglare |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Response Time |
20 (Typ.)(Tr+Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [3S6P] , 20K hours , W/O Driver |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 6/8-bit) 40 pins FPC |
|
Power Supply |
3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

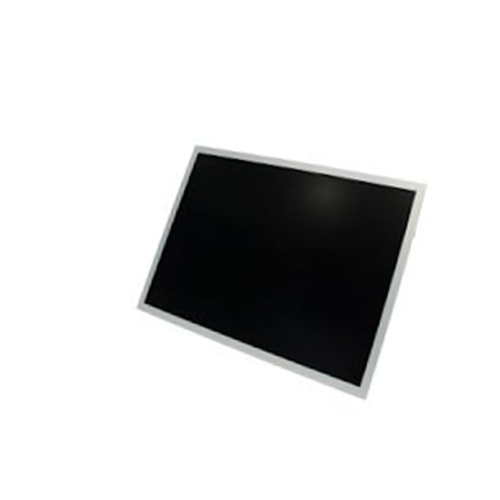

Product Picture:
