TM070JDHG30 TIANMA 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM070JDHG30 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM070JDHG30 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 161(W)×107(H) mm, viewing area size of 152.76(W)×96.6(H) mm, with surface treament of Hard coating (3H), net weight of 120g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM070JDHG30 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM070JDHG30 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TM070JDHG30 |
|
Manufacturer |
TIANMA |
|
Screen Size |
7.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
149.76 × 93.6 (H×V) |
|
Outline(mm) |
161 × 107 (H×V×D) |
|
Bezel Area(mm) |
152.76 × 96.6 (H×V) |
|
Treatment |
Hard coating (3H) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Response |
35 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SFT, Normally Black, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
3S7P WLED , 30K hours , No Driver |
|
Mass |
120g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 8-bit) , FPC 40 pins |
|
Voltage Supply |
3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

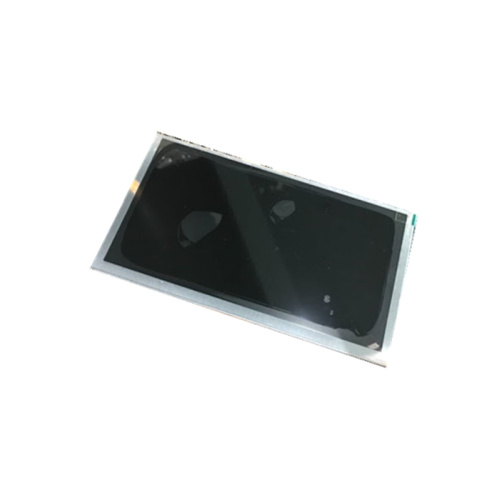

Product Picture:
