TA062VGHX01 TIANMA 6.2 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TA062VGHX01 is a 6.2 inch diagonal AM-OLED display screen product from TIANMA, it self emiting, touch screen On-Cell Touch. Tianma TFT-LCD is a 6.2 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev1.0 which was released out on 5 30 2018, TA062VGHX01 supports display with aspect ratio of 1:2 (W:H). As for mechanical detail, it features active area of 68.265(W)×142.07(H) mm, outline size of 70.156(W)×145.974(H) mm, with surface treament of Hard coating, net weight of TBD. TA062VGHX01 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product emiting itself . It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TA062VGHX01 |
|
Brand |
TIANMA |
|
Diagonal Size |
6.2 inch |
|
Type |
AM-OLED, OLED |
|
Pixel Format |
1080×2248 |
|
Active Area |
68.265(H)×142.07(V) mm |
|
Outline Dim. |
70.156(H)×145.974(V) mm |
|
Treatment |
Hard coating |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
10000:1 (Min.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
1 (Max.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Support Color |
16.7M 100% NTSC |
|
Light Source |
self |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
On-Cell Touch |
|
D-IC Detail |
No Suggest RM69299 |
|
Power Supply |
1.8/3.0/-6.7V (Typ.)(VDDI/VDD/AVDD) |
|
Environment |
Operating Temperature: -20 ~ 85 °C ; Storage Temperature: -55 ~ 125 °C |

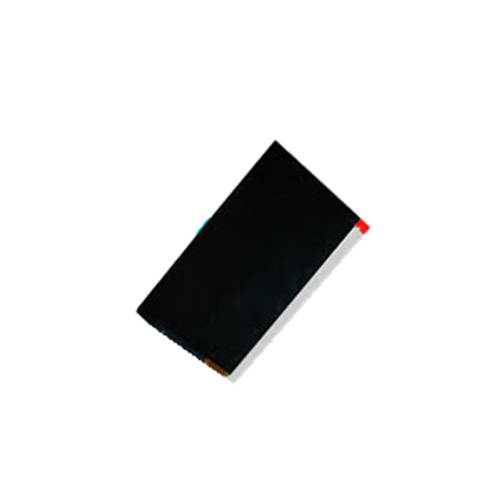

Product Picture:
