TM062RDS01 TIANMA 6.2 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM062RDS01 is a 6.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 6.2 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.2 which was released out on 7 30 2013, TM062RDS01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 137.4(W)×77.28(H) mm, outline size of 155.2(W)×88.2(H)×5.2(D) mm, viewing area size of 138.4(W)×78.28(H) mm, with surface treament of Antiglare, net weight of 118g. As a TN, Normally White, Transmissive LCM product, TM062RDS01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM062RDS01 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/10.5/20.0/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TM062RDS01 |
|
Manufacturer |
TIANMA |
|
Screen Size |
6.2 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×480 (WVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
137.4 × 77.28 (H×V) |
|
Outline(mm) |
155.2 × 88.2 × 5.2 (H×V×D) |
|
Bezel Area(mm) |
138.4 × 78.28 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
75/75/60/70 (Typ.)(CR≥10) |
|
Response |
20 (Typ.)(Tr+Td) ms |
|
Good View at |
12 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Backlight |
3S8P WLED , No Driver |
|
Mass |
118g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 6/8-bit) , FPC 60 pins |
|
Voltage Supply |
3.3/10.5/20.0/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

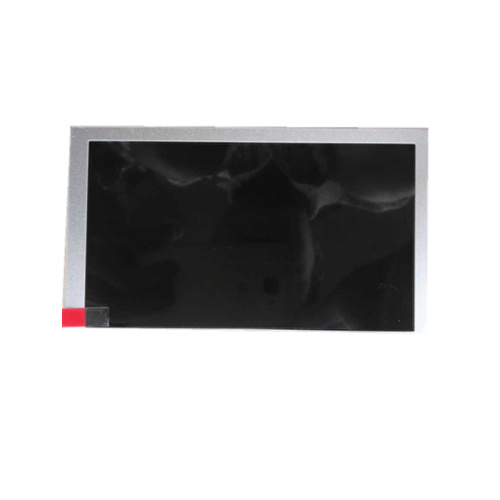

Product Picture:
