TM060JVZG02 TIANMA 6.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM060JVZG02 is a 6.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touch screen PCAP. Tianma TFT-LCD is a 6.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM060JVZG02 supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 251 PPI. As for mechanical detail, it features active area of 80.76(W)×129.216(H) mm, outline size of 152.62(W)×104.16(H)×6.5(D) mm, with surface treament of Antiglare (Haze 1%), net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM060JVZG02 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM060JVZG02 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins FPC.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM060JVZG02 |
|
Brand |
TIANMA |
|
Diagonal Size |
6.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×1280 [WXGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
80.76(H)×129.216(V) mm |
|
Outline Dim. |
152.62(H)×104.16(V) ×6.5(D) mm |
|
Treatment |
Antiglare (Haze 1%) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Operating Mode |
SFT, Normally Black, Transmissive |
|
Support Color |
16.7M 68% NTSC |
|
Light Source |
WLED , 30K hours , W/O Driver |
|
Weight |
TBD |
|
Touch Panel |
PCAP |
|
Interface Type |
MIPI (4 data lanes) , 39 pins FPC |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |

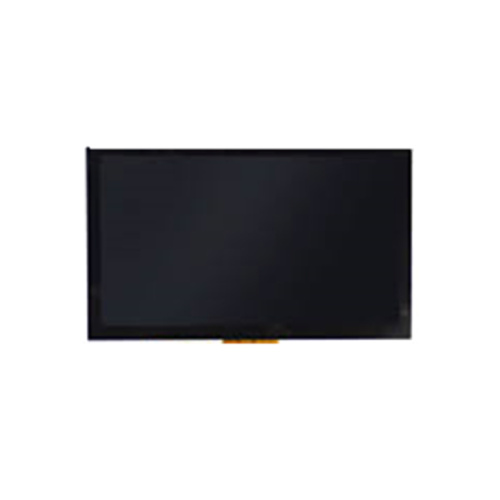

Product Picture:
