TM057QDH01-41 TIANMA 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM057QDH01-41 is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 5.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM057QDH01-41 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 155g. As a TN, Normally White, Transmissive LCM product, TM057QDH01-41 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 7S3P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed. TM057QDH01-41 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM057QDH01-41 |
|
Brand |
TIANMA |
|
Diagonal Size |
5.7 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
640(RGB)×480 [VGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
115.2(H)×86.4(V) mm |
|
Outline Dim. |
144(H)×104.6(V) ×12.8(D) mm |
|
Bezel Area |
118.2(H)×89.4(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
20 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 50% NTSC |
|
Light Source |
WLED [7S3P] , 50K hours , W/O Driver |
|
Weight |
155g |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |

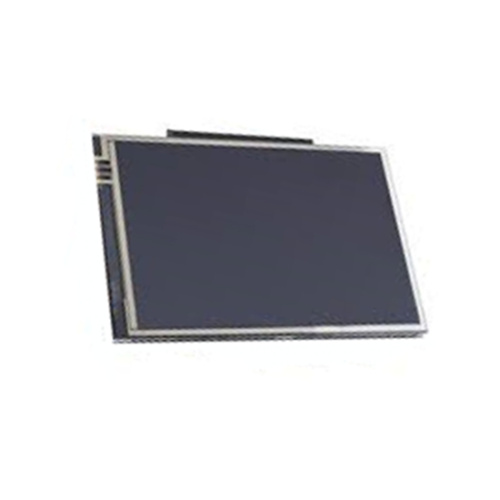

Product Picture:
