TM057JDHP04-30 TIANMA 5.7 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM057JDHP04-30 is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 5.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 5 22 2015, TM057JDHP04-30 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 256 PPI. As for mechanical detail, it features active area of 71.28(W)×126.72(H) mm, outline size of 74.98(W)×137(H)×1.67(D) mm, with surface treament of Clear, net weight of 24.0g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM057JDHP04-30 can provides 450 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM057JDHP04-30 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 24pins Connector with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VCC). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM057JDHP04-30
Brand	TIANMA
Diagonal Size	5.7 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	720(RGB)×1280 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	71.28(H)×126.72(V) mm
Outline Dim.	74.98(H)×137(V) ×1.67(D) mm
Treatment	Clear
Luminance	450 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 70% NTSC
Light Source	WLED [7S2P] , W/O Driver
Weight	24.0g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	MIPI (4 data lanes) , 24 pins Connector
Power Supply	1.8/2.8V (Typ.)(IOVCC/VCC)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

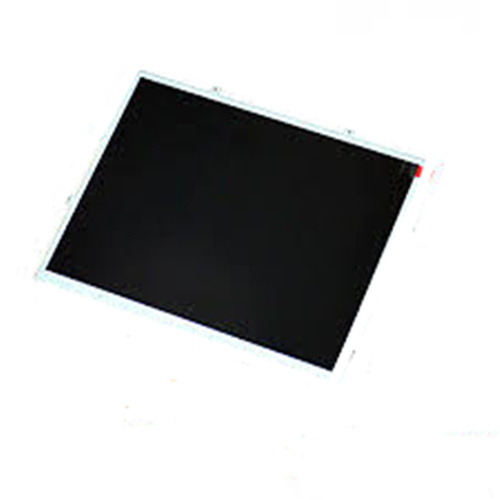

Product Picture:

TM057JDHP04-30
