TM057KDH01 TIANMA 5.7inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM057KDH01 is a 5.7 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM057KDH01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 160g (Typ.). As a TN, Normally White, Transmissive LCM product, TM057KDH01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/30 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TM057KDH01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM057KDH01 |
|
Panel Brand |
TIANMA |
|
Panel Size |
5.7" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240 , QVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
115.2(W)×86.4(H) mm |
|
Bezel Opening |
118.2(W)×89.4(H) mm |
|
Outline Size |
144(W)×104.6(H) ×12.8(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
20/30 (Typ./Max.)(Tr+Td) |
|
Display Colors |
262K 50% NTSC |
|
Lamp Type |
5S3P WLED , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
160g (Typ.) |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |

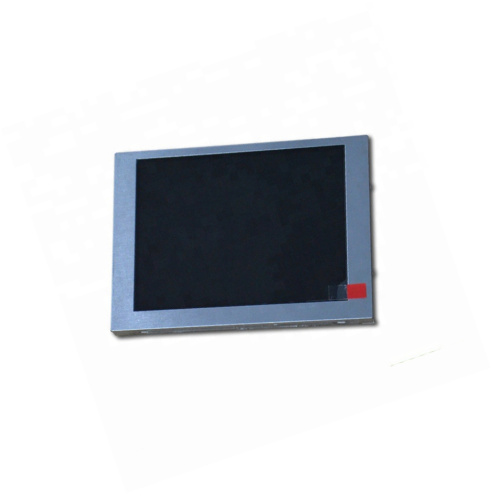

Product Picture:
