TM056KDH01 TIANMA 5.6 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM056KDH01 (Alias: TS056KAAAD01-00) is a 5.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 5.6 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver2.2 which was released out on 2 5 2009, TM056KDH01 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 113.28(W)×84.708(H) mm, outline size of 126.5(W)×100(H) mm, viewing area size of 116.08(W)×87.51(H) mm, with surface treament of Antiglare, net weight of 123g (Typ.). As a TN, Normally White, Transmissive LCM product, TM056KDH01 can provides 200 cd/m² display brightness 300:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms., thus presenting a palette of Full color colors, also with performance of color gamut 50% (NTSC). This product adopted 2S7P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM056KDH01 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26pins FPC with power supply voltage of 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL).

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM056KDH01
Brand	TIANMA
Diagonal Size	5.6 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	320(RGB)×234
Configuration	RGB Vertical Stripe
Active Area	113.28(H)×84.708(V) mm
Outline Dim.	126.5(H)×100(V) mm
Bezel Area	116.08(H)×87.51(V) mm
Treatment	Antiglare
Luminance	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	65/65/45/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color 50% NTSC
Light Source	WLED [2S7P] , W/O Driver
Weight	123g (Typ.)
Touch Panel	Without
Interface Type	TFT Specific Analog RGB , 26 pins FPC
Power Supply	5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

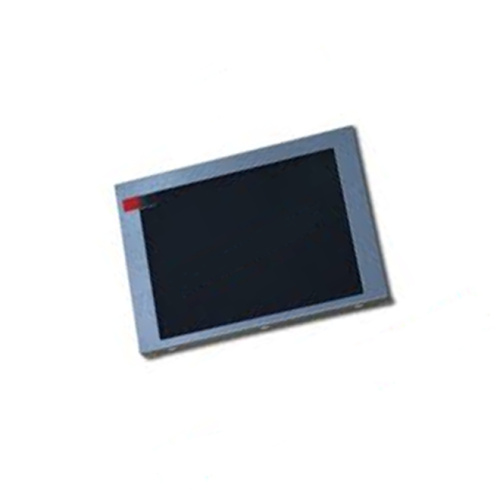

Product Picture:

TM056KDH01
