TA055JHHM01 TIANMA 5.5inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TA055JHHM01 is a 5.5 inch diagonal AM-OLED display screen product from TIANMA, it self emiting, touch screen On-Cell Touch. Tianma TFT-LCD is a 5.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.0 which was released out on 12 28 2016, TA055JHHM01 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 268 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.64(W)×120.96(H) mm. TA055JHHM01 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 105% (NTSC). This product emiting itself . It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TA055JHHM01 |
|
Panel Brand |
TIANMA |
|
Panel Size |
5.5" |
|
Panel Type |
AM-OLED, OLED |
|
Resolution |
720(RGB)×1280 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
68.04(W)×120.96(H) mm |
|
Outline Size |
70.64(W)×120.96(H) mm |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
|
Best View on |
Symmetry |
|
Response Time |
1 (Max.)(Tr+Td) |
|
Display Colors |
16.7M 105% NTSC |
|
Lamp Type |
self |
|
Frequency |
60Hz |
|
Touch Screen |
On-Cell Touch |
|
Driver IC |
COG Suggest RM67120G90 |
|
Environment |
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |

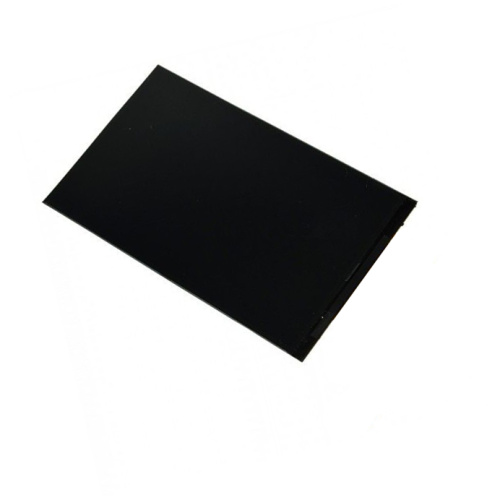

Product Picture:
