TL055BDXP02 TIANMA 5.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TL055BDXP02 is a 5.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 5.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TL055BDXP02 supports display 1440(RGB)×2560 (Quad-HD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 537 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.94(W)×128.49(H)×1.46(D) mm, with surface treament of Hard coating (5H), net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TL055BDXP02 can provides , 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TL055BDXP02 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/6.0/-6.0V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TL055BDXP02 |
|
Manufacturer |
TIANMA |
|
Screen Size |
5.5 inch |
|
Screen Type |
LCM , LTPS TFT-LCD |
|
Pixel Number |
1440(RGB)×2560 (Quad-HD) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
68.04 × 120.96 (H×V) |
|
Outline(mm) |
70.94 × 128.49 × 1.46 (H×V×D) |
|
Treatment |
Hard coating (5H) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Response |
30 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SFT, Normally Black, Transmissive |
|
Color Depth |
16.7M 68% NTSC |
|
Backlight |
7S2P WLED , No Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
MIPI (2 ch, 4 data lanes) , 50 pins Connector |
|
Voltage Supply |
1.8/6.0/-6.0V (Typ.)(IOVCC/VSP/VSN) |
|
Max. Ratings |
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |

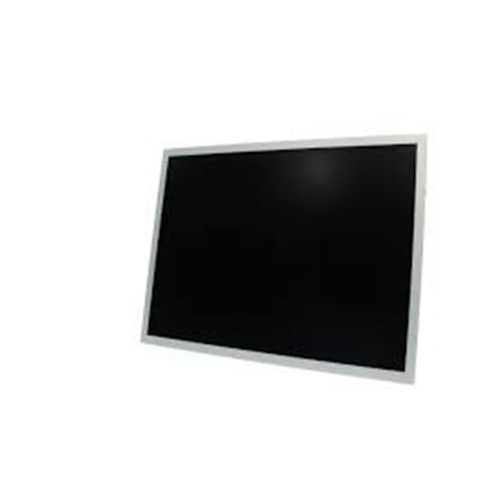

Product Picture:
