TM050RVHG02-41 TIANMA 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM050RVHG02-41 is a 5.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touch screen PCAP. Tianma TFT-LCD is a 5.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.1 which was released out on 11 8 2018, TM050RVHG02-41 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 123.26(W)×80.06(H)×4.85(D) mm, with surface treament of Antiglare, net weight of 93.4g. As a TN, Normally White, Transmissive Assembly product, TM050RVHG02-41 can provides 330 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM050RVHG02-41 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM050RVHG02-41 |
|
Brand |
TIANMA |
|
Diagonal Size |
5.0 inch |
|
Type |
a-Si TFT-LCD, Assembly |
|
Pixel Format |
800(RGB)×480 [WVGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
108(H)×64.8(V) mm |
|
Outline Dim. |
123.26(H)×80.06(V) ×4.85(D) mm |
|
Treatment |
Antiglare |
|
Luminance |
330 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
View Direction |
12 o'clock |
|
Response Time |
20 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M 50% NTSC |
|
Light Source |
WLED [7S2P] , 20K hours , W/O Driver |
|
Weight |
93.4g |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

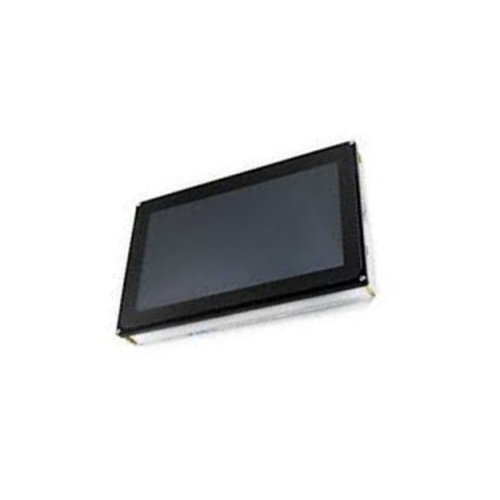

Product Picture:
