TM050RDZG03 TIANMA 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM050RDZG03 is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. Tianma TFT-LCD is a 5.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of 00_Final Ver3.0 which was released out on 1 7 2019, TM050RDZG03 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 132.7(W)×77.8(H)×5.9(D) mm, viewing area size of 111.1(W)×67.9(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, TM050RDZG03 can provides 1000 cd/m² display brightness 750:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20/30 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. TM050RDZG03 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM050RDZG03 |
|
Brand |
TIANMA |
|
Diagonal Size |
5.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
108(H)×64.8(V) mm |
|
Outline Dim. |
132.7(H)×77.8(V) ×5.9(D) mm |
|
Bezel Area |
111.1(H)×67.9(V) mm |
|
Treatment |
Antiglare |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
750:1 (Typ.) (TM) |
|
View Direction |
12 o'clock |
|
Response Time |
20/30 (Typ./Max.)(Tr+Td) |
|
Viewing Angle |
80/80/70/80 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M 50% NTSC |
|
Light Source |
WLED [3S6P] , 50K hours |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |

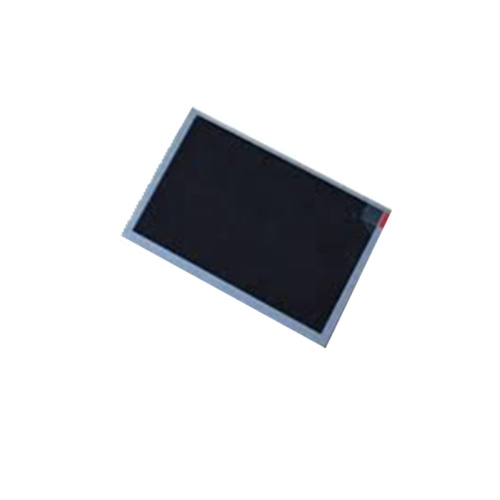

Product Picture:
