TM050JDHC02 TIANMA 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM050JDHC02 is a 5.0inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen On-Cell Touch. Tianma TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM050JDHC02 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 294 PPI. As for mechanical detail, it features active area of 62.1(W)×110.4(H) mm, outline size of 66.1(W)×118.3(H)×1.81(D) mm, net weight of 26.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM050JDHC02 can provides 300 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM050JDHC02 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40pins FPC with power supply voltage of 1.8/3.3/6.0/-6.0V (Typ.)(IOVCC/VCCB/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	TM050JDHC02
Manufacturer	TIANMA
Screen Size	5.0 inch
Pixel Number	720(RGB)×1280 (WXGA)
Active Area(mm)	62.1 × 110.4 (H×V)
Luminance	300 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 70% NTSC
Mass	26.0g (Typ.)
Refresh Rate	60Hz
Screen Type	LCM , a-Si TFT-LCD
Arrangement	RGB Vertical Stripe
Outline(mm)	66.1 × 118.3 × 1.81 (H×V×D)
Contrast Ratio	900 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	30 (Typ.)(Tr+Td) ms
Backlight	3S4P WLED , 20K hours , No Driver
Touchscreen	In-Cell Touch
Signal Type	MIPI (4 data lanes) , 40 pins FPC
Voltage Supply	1.8/3.3/6.0/-6.0V (Typ.)(IOVCC/VCCB/AVDD/AVEE)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Product Picture:

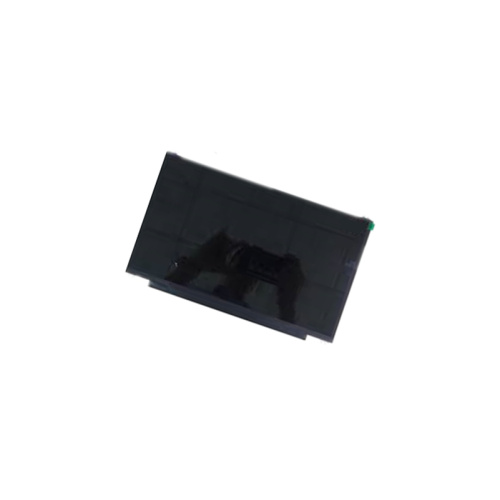

TM050JDHC02
