TM047JVHN05 TIANMA 4.7inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM047JVHN05 is a 4.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen On-Cell Touch. Tianma TFT-LCD is a 4.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.3 which was released out on 6 24 2016, TM047JVHN05 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 314 PPI. As for mechanical detail, it features active area of 58.104(W)×103.296(H) mm, outline size of 64.84(W)×132.2(H) mm, net weight of 28.3g (Typ.). As a SFT, Normally Black, Transmissive Assembly product, TM047JVHN05 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM047JVHN05 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30pins Connector with power supply voltage of (1.8/2.8)/2.8V (Typ.)(VDDI/VCI). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM047JVHN05 |
|
Panel Brand |
TIANMA |
|
Panel Size |
4.7" |
|
Panel Type |
a-Si TFT-LCD, Assembly |
|
Resolution |
720(RGB)×1280 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
58.104(W)×103.296(H) mm |
|
Outline Size |
64.84(W)×132.2(H) mm |
|
Brightness |
450 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 85% NTSC |
|
Lamp Type |
5S2P WLED , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
On-Cell Touch |
|
Panel Weight |
28.3g (Typ.) |
|
Signal Interface |
MIPI (4 data lanes) , 30 pins Connector |
|
Input Voltage |
(1.8/2.8)/2.8V (Typ.)(VDDI/VCI) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |

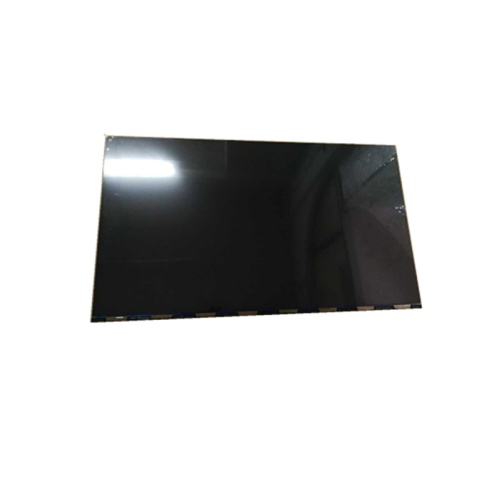

Product Picture:
