TM043NDSP01 TIANMA 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM043NDSP01 is a 4.3 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver,without touch screen. Tianma TFT-LCD is a 4.3 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM043NDSP01 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.2(D) mm, viewing area size of 99.6(W)×56.7(H) mm, net weight of 44.4g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM043NDSP01 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM043NDSP01 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.).
We are able to offer AD board for this display to support VGA video input.
Model Name
TM043NDSP01
Manufacturer
TIANMA
Screen Size
4.3 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
480(RGB)×272 (WQVGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
95.04 × 53.856 (H×V)
Outline(mm)
105.5 × 67.2 × 3.2 (H×V×D)
Bezel Area(mm)
99.6 × 56.7 (H×V)
Luminance
400 cd/m² (Typ.)
Contrast Ratio
800 : 1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Response
20 (Typ.)(Tr+Td) ms
Good View at
Symmetry
Work Mode
SFT, Normally Black, Transmissive
Color Depth
16.7M 50% NTSC
Backlight
5S2P WLED , 30K hours , No Driver
Mass
44.4g (Typ.)
Touchscreen
Without
Signal Type
Parallel RGB (1 ch, 8-bit) , FPC 40 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

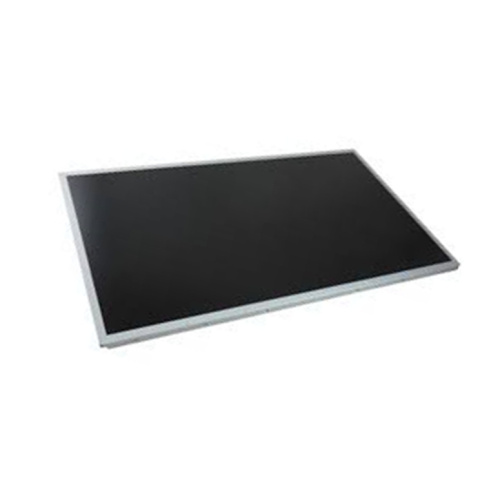

Product Picture:
