TM040WDHT1 TIANMA 4.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM040WDHT1 is a 4.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 4.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver2.2 which was released out on 1 15 2015, TM040WDHT1 supports display 360(RGB)×600 (nHD) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 51.84(W)×86.4(H) mm, outline size of 60.04(W)×102.8(H)×3(D) mm, viewing area size of 54.44(W)×88.72(H) mm, net weight of 33.2g (Typ.). As a ECB, Normally White, Transflective LCM product, TM040WDHT1 can provides 200 cd/m² display brightness 100:1 transimissive contrast ratio, 8:1 (Typ.) reflective contrast ratio, 55/40/40/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 35% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM040WDHT1 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 57 pins FPC with power supply voltage of 2.8/2.8V (Typ.)(VDDC/VCC).
We are able to offer AD board for this display to support VGA video input.
Model
TM040WDHT1
Brand
TIANMA
Diagonal Size
4.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
360(RGB)×600 [nHD]
Configuration
RGB Vertical Stripe
Active Area
51.84(H)×86.4(V) mm
Outline Dim.
60.04(H)×102.8(V) ×3(D) mm
Bezel Area
54.44(H)×88.72(V) mm
Luminance
200 cd/m² (Typ.)
Contrast Ratio
100:1 (Typ.) (TM) 8:1 (Typ.) (RF)
View Direction
6 o'clock
Response Time
40 (Typ.)(Tr+Td)
Viewing Angle
55/40/40/45 (Typ.)(CR≥10)
Operating Mode
ECB, Normally White, Transflective
Support Color
16.7M 35% NTSC
Light Source
WLED [4S2P] , 20K hours , W/O Driver
Weight
33.2g (Typ.)
Touch Panel
Without
Interface Type
Parallel RGB (1 ch, 8-bit) , 57 pins FPC
Power Supply
2.8/2.8V (Typ.)(VDDC/VCC)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

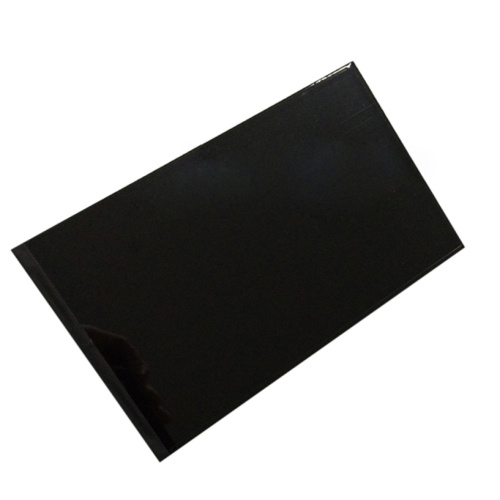

Product Picture:
