Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM037WBHT01 is a 3.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch. Tianma TFT-LCD is a 3.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver4.0 which was released out on 7 12 2016, TM037WBHT01 supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 58.16(W)×75.88(H) mm, outline size of 65(W)×89(H)×6(D) mm, with surface treament of Hard coating, net weight of 47.0g (Typ.). As a TN, Normally White, Transflective LCM product, TM037WBHT01 can provides 155 cd/m² display brightness 150:1 transimissive contrast ratio, 8:1 (Typ.) reflective contrast ratio, 50/55/45/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TM037WBHT01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/3.0V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM037WBHT01
Brand	TIANMA
Diagonal Size	3.7 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480(RGB)×640 [VGA]
Configuration	RGB Vertical Stripe
Active Area	58.16(H)×75.88(V) mm
Outline Dim.	65(H)×89(V) ×6(D) mm
Treatment	Hard coating
Luminance	155 cd/m² (Typ.)
Contrast Ratio	150:1 (Typ.) (TM) 8:1 (Typ.) (RF)
View Direction	6 o'clock
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	50/55/45/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transflective
Support Color	262K 35% NTSC
Light Source	WLED [6S1P] , 50K hours , W/O Driver
Weight	47.0g (Typ.)
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit) , 39 pins FPC
Power Supply	1.8/3.0V (Typ.)(VCCIO/VDD)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

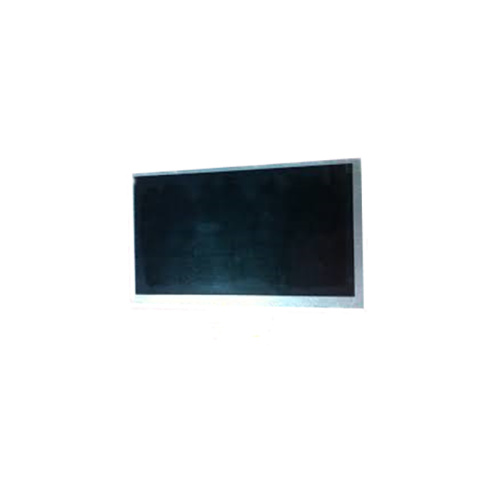

Product Picture:

TM037WBHT01
