TM035KVHG01-40 TIANMA 3.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM035KVHG01-40 is a 3.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touchs creen PCAP. Tianma TFT-LCD is a 3.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.0 which was released out on 8 30 2017, TM035KVHG01-40 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 79.9(W)×68.9(H)×4.88(D) mm. As a TN, Normally White, Transmissive LCM product, TM035KVHG01-40 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM035KVHG01-40 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM035KVHG01-40
Brand	TIANMA
Diagonal Size	3.5 inch
Pixel Format	320(RGB)×240 [QVGA]
Active Area	70.08(H)×52.56(V) mm
Luminance	400 cd/m² (Typ.)
View Direction	12 o'clock
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Support Color	16.7M 60% NTSC
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	79.9(H)×68.9(V) ×4.88(D) mm
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	20 (Typ.)(Tr+Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [6S1P] , 20K hours , W/O Driver
Touch Panel	PCAP
Interface Type	Parallel RGB (1 ch, 8-bit) + SPI 54 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

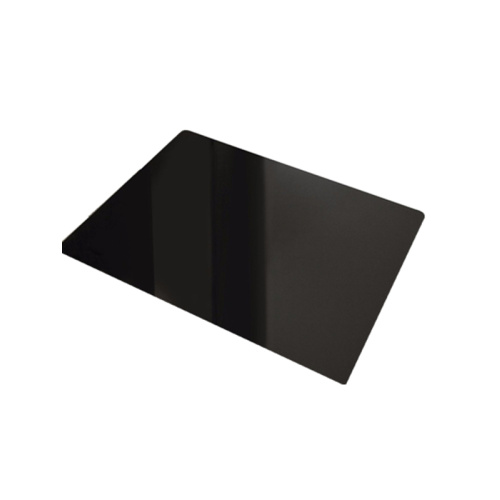

Product Picture:

TM035KVHG01-40
