PD150XL1 PVI 15.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PD150XL1 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 8 11 2008, PD150XL1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×14.35(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating, net weight of 1.08/1.13Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, PD150XL1 can provides 450 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8/17 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. PD150XL1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).

We are able to offer AD board for this display to support VGA video input.

Panel Model	PD150XL1
Panel Brand	PVI
Panel Size	15.0"
Resolution	1024(RGB)×768, XGA, 85PPI
Display Area	304.128(W)×228.096(H) mm
Outline Size	326.5(W)×253.5(H) ×14.35(D) mm
Brightness	450 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Colors	16.2M
Weight	1.08/1.13Kgs (Typ./Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	307.4(W)×231.3(H) mm
Surface	Antiglare, Hard coating
Contrast Ratio	700:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	8/17 (Typ.)(Tr/Td)
Lamp Type	2 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C

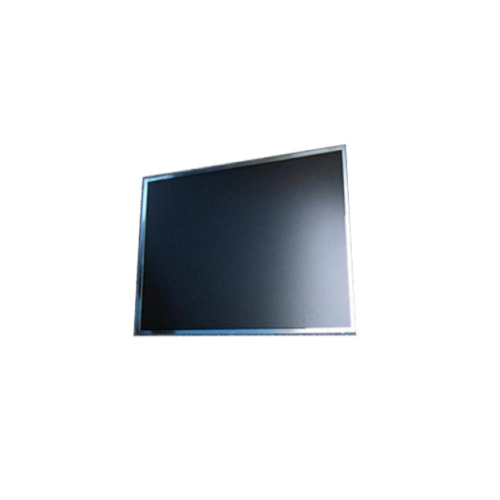

Product Picture:

PD150XL1
