PD121XL4 PVI 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PD121XL4 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 5 27 2010, PD121XL4 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×204(H)×8.1(D) mm, viewing area size of 249.56(W)×188.12(H) mm, with surface treament of Antiglare, net weight of 473±20g. As a TN, Normally White, Transmissive LCM product, PD121XL4 can provides 550 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S18P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. PD121XL4 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PD121XL4 |
|
Panel Brand |
PVI |
|
Panel Size |
12.1" |
|
Resolution |
1024(RGB)×768, XGA, 105PPI |
|
Display Area |
245.76(W)×184.32(H) mm |
|
Outline Size |
260.5(W)×204(H) ×8.1(D) mm |
|
Brightness |
550 cd/m² (Typ.) |
|
Viewing Angle |
75/75/60/55 (Typ.)(CR≥10) |
|
Best View on |
12 o'clock |
|
Display Colors |
262K |
|
Frequency |
60Hz |
|
Weight |
473±20g |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
249.56(W)×188.12(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/20 (Typ.)(Tr/Td) |
|
Lamp Type |
3S18P WLED , 30K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C |

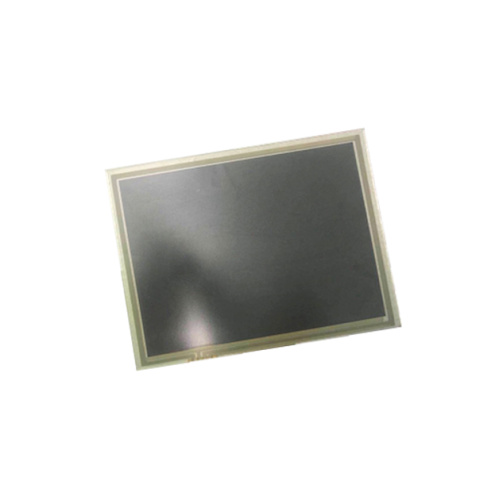

Product Picture:
