PW062XU8 PVI 6.2 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PW062XU8 is a 6.2 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in WLED backlight, without backlight driver, without touch screen. This PVI TFT-LCD is a 6.2 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver2.0 which was released out on 7 21 2010, PW062XU8 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 137.52(W)×77.22(H) mm, outline size of 155.2(W)×88.2(H) mm, viewing area size of 140.7(W)×80.4(H) mm, with surface treament of Antiglare, net weight of 134±10g. As a TN, Normally White, Transmissive LCM product, PW062XU8 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PW062XU8 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	PW062XU8
Brand	PVI
Diagonal Size	6.2 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480(RGB)×234 86PPI
Configuration	RGB Vertical Stripe
Active Area	137.52(H)×77.22(V) mm
Outline Dim.	155.2(H)×88.2(V) mm
Bezel Area	140.7(H)×80.4(V) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	75/75/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color
Light Source	WLED [3S8P] , 30K hours , W/O Driver
Weight	134±10g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TFT Specific Analog RGB , 26 pins FPC
Power Supply	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

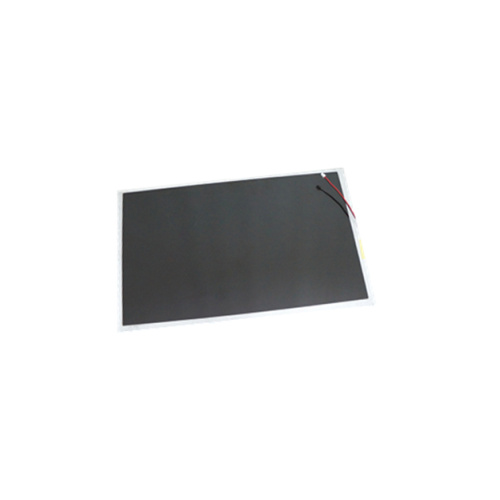

Product Picture:

PW062XU8
