PW045XS1 PVI 4.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PW045XS1 is a 4.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 4.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver9.0 which was released out on 4 18 2008, PW045XS1 supports display 320(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 99.36(W)×56(H) mm, outline size of 111.5(W)×69.5(H)×6.9(D) mm, viewing area size of 103.4(W)×60.1(H) mm, with surface treament of Antiglare, net weight of 84.0±5.0g. As a TN, Normally White, Transmissive LCM product, PW045XS1 can provides 400 cd/m² display brightness 350:1 transimissive contrast ratio, 55/55/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/30 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 20K hours, external backlight driver is additionally needed. PW045XS1 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 5.0/5.0/5.0/17V (Typ.)(VCC/VDD1/VDD2/VGH). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PW045XS1 |
|
Panel Brand |
PVI |
|
Panel Size |
4.5" |
|
Resolution |
320(RGB)×234, 88PPI |
|
Display Area |
99.36(W)×56(H) mm |
|
Outline Size |
111.5(W)×69.5(H) ×6.9(D) mm |
|
Brightness |
400 cd/m² (Typ.) |
|
Viewing Angle |
55/55/15/35 (Typ.)(CR≥10) |
|
Display Colors |
Full color |
|
Frequency |
60Hz |
|
Weight |
84.0±5.0g |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
103.4(W)×60.1(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
350:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
15/30 (Typ.)(Tr/Td) |
|
Lamp Type |
1 pcs CCFL , 20K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
TFT Specific Analog RGB , 30 pins FPC |
|
Input Voltage |
5.0/5.0/5.0/17V (Typ.)(VCC/VDD1/VDD2/VGH) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

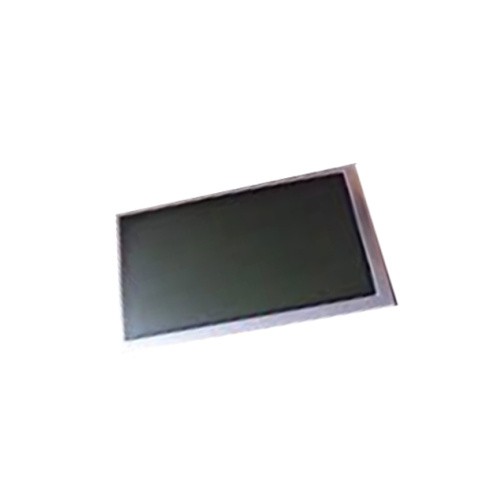

Product Picture:
