PD064VL1 PVI 6.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PD064VL1 is a 6.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 6.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 8 11 2008, PD064VL1 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.6(W)×97.44(H) mm, outline size of 175.4(W)×126.9(H)×13(D) mm, viewing area size of 134.8(W)×101.8(H) mm, with surface treament of Antiglare, net weight of 332±10g. As a TN, Normally White, Transmissive LCM product, PD064VL1 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. PD064VL1 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
PD064VL1 |
|
Manufacturer |
PVI |
|
Screen Size |
6.4 inch |
|
Pixel Number |
640(RGB)×480 (VGA) 125PPI |
|
Active Area(mm) |
129.6 × 97.44 (H×V) |
|
Bezel Area(mm) |
134.8 × 101.8 (H×V) |
|
Luminance |
400 (Typ.)(cd/m²) |
|
Viewing Angle |
60/60/40/55 (Typ.)(CR≥10) |
|
Good View at |
6 o'clock |
|
Color Depth |
262K |
|
Mass |
332±10g |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
175.4 × 126.9 × 13 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
400 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
15/25 (Typ.)(Tr/Td) ms |
|
Backlight |
2 pcs CCFL , 50K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C |

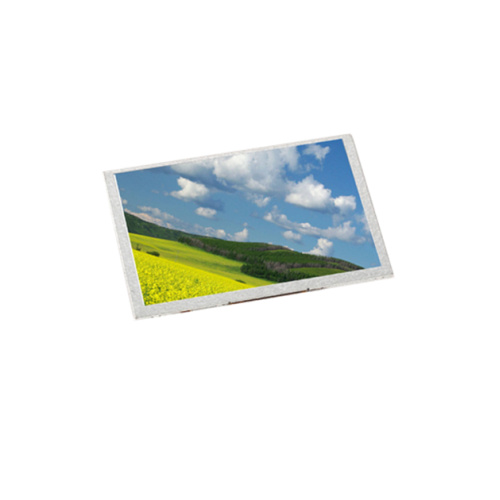

Product Picture:
