PD057VU6 PVI 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PD057VU6 is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, touch screen 4-wire Resistive Touch. This PVI TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver3.0 which was released out on 10 12 2007, PD057VU6 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×14.95(D) mm, viewing area size of 117.2(W)×88.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 244±10g. As a TN, Normally White, Transmissive LCM product, PD057VU6 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 50K hours, external backlight driver is additionally needed. PD057VU6 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PD057VU6 |
|
Panel Brand |
PVI |
|
Panel Size |
5.7" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240, QVGA, 70PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
115.2(W)×86.4(H) mm |
|
Bezel Opening |
117.2(W)×88.4(H) mm |
|
Outline Size |
144(W)×104.6(H) ×14.95(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
60/60/40/50 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
15/25 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
1 pcs CCFL , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Panel Weight |
244±10g |
|
Signal Interface |
TTL (1 ch, 6-bit) , 33 pins Connector |
|
Input Voltage |
3.3V (Typ.)(VCC) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C |

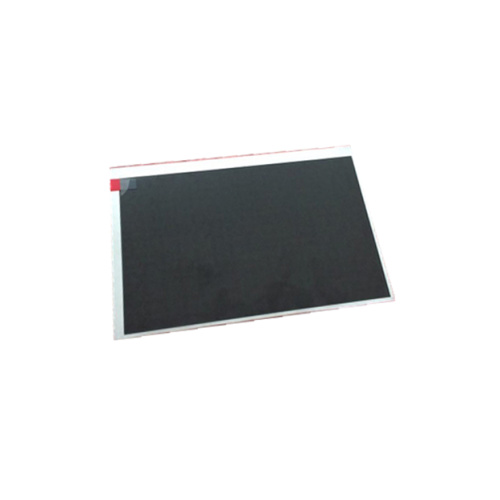

Product Picture:
