PD057QT2 PVI 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
PD057QT2 is a 5.7 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in CCFL backlight, without backlight driver, without touch screen. This PVI TFT-LCD is a 5.7 inch with Consumer Lcd Display , it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver3.0 which was released out on 6 21 2009, PD057QT2 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×13.3(D) mm, viewing area size of 117.2(W)×88.4(H) mm, with surface treament of Antiglare, net weight of 205±10g. As a TN, Normally White, Transmissive LCM product, PD057QT2 can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 50K hours, external backlight driver is additionally needed. PD057QT2 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
PD057QT2 |
|
Manufacturer |
PVI |
|
Screen Size |
5.7 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
320(RGB)×240 (QVGA) 70PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
115.2 × 86.4 (H×V) |
|
Outline(mm) |
144 × 104.6 × 13.3 (H×V×D) |
|
Bezel Area(mm) |
117.2 × 88.4 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
400 : 1 (Typ.) (TM) |
|
Viewing Angle |
75/75/50/70 (Typ.)(CR≥10) |
|
Response |
15/25 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K |
|
Backlight |
1 pcs CCFL , 50K hours , No Driver |
|
Mass |
205±10g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
TTL (1 ch, 6-bit) , 33 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C |

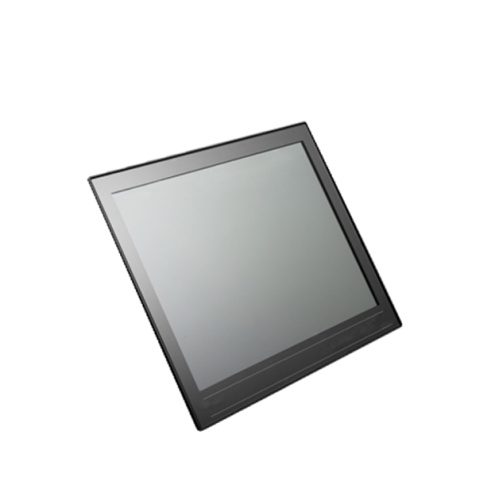

Product Picture:
