PA064DS2 PVI 6.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
PA064DS2 is a 6.4" diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This PVI TFT-LCD is a 6.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PA064DS2 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.6(W)×97.34(H) mm, outline size of 156.3(W)×119.8(H)×14.7(D) mm, viewing area size of 134.8(W)×101.65(H) mm, with surface treament of Antiglare, net weight of 235±10g. As a TN, Normally White, Transmissive LCM product, PA064DS2 can provides 300 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms.. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. PA064DS2 utilizes Analog RGB + Composite Video (NTSC/PAL) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
PA064DS2 |
|
Manufacturer |
PVI |
|
Screen Size |
6.4 inch |
|
Pixel Number |
320(RGB)×234 62PPI |
|
Active Area(mm) |
129.6 × 97.34 (H×V) |
|
Bezel Area(mm) |
134.8 × 101.65 (H×V) |
|
Luminance |
300 (Typ.)(cd/m²) |
|
Viewing Angle |
50/50/15/35 (Typ.)(CR≥10) |
|
Good View at |
6 o'clock |
|
Mass |
235±10g |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
156.3 × 119.8 × 14.7 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
350 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
15/25 (Typ.)(Tr/Td) ms |
|
Backlight |
1 pcs CCFL , 30K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
Analog RGB + Composite Video (NTSC/PAL) , 20 pins Connector |
|
Voltage Supply |
5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

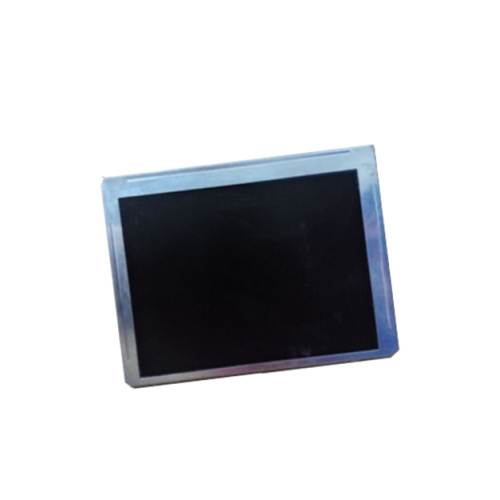

Product Picture:
