PA064DS1 PVI 6.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PA064DS1 is a 6.4 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in CCFL backlight, without backlight driver, without touch screen. This PVI TFT-LCD is a 6.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver8.0 which was released out on 4 11 2008, PA064DS1 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.6(W)×97.34(H) mm, outline size of 156.3(W)×119.8(H)×14.7(D) mm, viewing area size of 134.8(W)×101.65(H) mm, with surface treament of Antiglare, net weight of 235±10g. As a TN, Normally White, Transmissive LCM product, PA064DS1 can provides 330 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms.. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. PA064DS1 utilizes Analog RGB + Composite Video (NTSC/PAL) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	PA064DS1
Brand	PVI
Diagonal Size	6.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	320(RGB)×234 62PPI
Configuration	RGB Vertical Stripe
Active Area	129.6(H)×97.34(V) mm
Outline Dim.	156.3(H)×119.8(V) ×14.7(D) mm
Bezel Area	134.8(H)×101.65(V) mm
Treatment	Antiglare
Luminance	330 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs] , 30K hours , W/O Driver
Weight	235±10g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Analog RGB + Composite Video (NTSC/PAL) , 20 pins Connector
Power Supply	5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

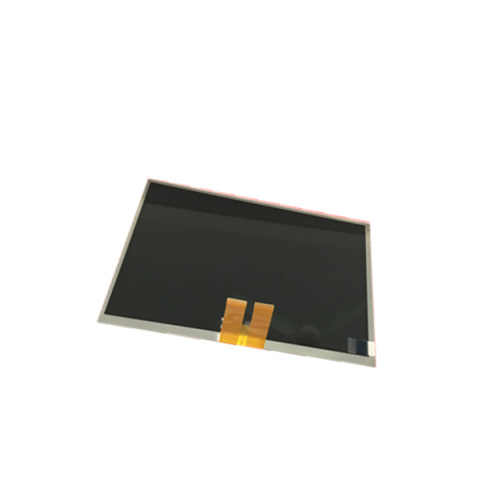

Product Picture:

PA064DS1
