PA050XU6 PVI 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PA050XU6 is a 5.0 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in WLED backlight, without backlight driver, without touch screen. This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver4.0 which was released out on 10 31 2008, PA050XU6 supports display 320(RGB)×234 with aspect ratio of 7:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.72(W)×74.53(H) mm, outline size of 119.3(W)×91.4(H)×7.8(D) mm, viewing area size of 106.7(W)×78.5(H) mm, with surface treament of Antiglare, net weight of 116±5g. As a TN, Normally White, Transmissive LCM product, PA050XU6 can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/30 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PA050XU6 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL).

We are able to offer AD board for this display to support VGA video input.

Model	PA050XU6
Brand	PVI
Diagonal Size	5.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	320(RGB)×234 79PPI
Configuration	RGB Vertical Stripe
Active Area	102.72(H)×74.53(V) mm
Outline Dim.	119.3(H)×91.4(V) ×7.8(D) mm
Bezel Area	106.7(H)×78.5(V) mm
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	15/30 (Typ.)(Tr/Td)
Viewing Angle	70/70/40/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color
Light Source	WLED [3S5P] , 30K hours , W/O Driver
Weight	116±5g
Touch Panel	Without
Interface Type	TFT Specific Analog RGB , 30 pins FPC
Power Supply	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

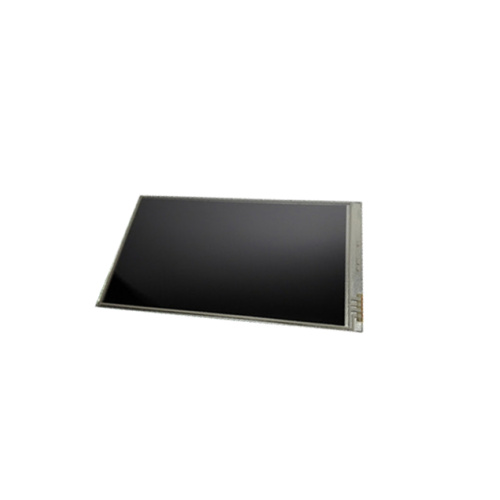

Product Picture:

PA050XU6
