PA035XSE PVI 3.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PA035XSE is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller , Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver8.0 which was released out on 3 24 2008, PA035XSE supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 71.6(W)×52.65(H) mm, outline size of 83.7(W)×68.6(H)×6.9(D) mm, viewing area size of 73.65(W)×54.65(H) mm, with surface treament of Antiglare, net weight of 58.0±5.0g. As a TN, Normally White, Transmissive LCM product, PA035XSE can provides 250 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 30K hours, external backlight driver is additionally needed. PA035XSE utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 28 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL).

We are able to offer AD board for this display to support VGA video input.

Panel Model	PA035XSE
Panel Brand	PVI
Panel Size	3.5"
Resolution	320(RGB)×234, 113PPI
Display Area	71.6(W)×52.65(H) mm
Outline Size	83.7(W)×68.6(H) ×6.9(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	50/50/15/35 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	Full color
Weight	58.0±5.0g
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Delta
Bezel Opening	73.65(W)×54.65(H) mm
Surface	Antiglare
Contrast Ratio	350:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	15/25 (Typ.)(Tr/Td)
Lamp Type	1 pcs CCFL , 30K hours , Without Driver
Touch Screen	Without
Signal Interface	TFT Specific Analog RGB , 28 pins FPC
Input Voltage	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

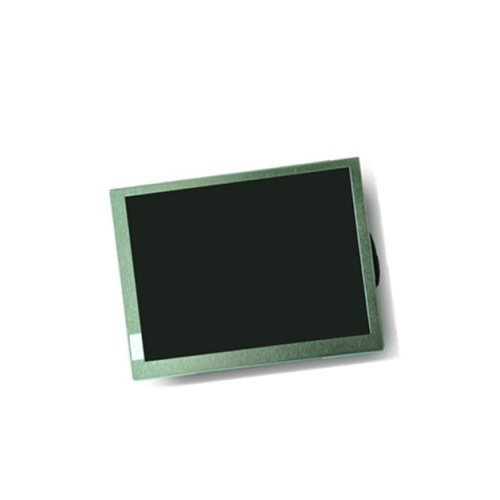

Product Picture:

PA035XSE
