PA050XSG PVI 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PA050XSG is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PA050XSG supports display 320(RGB)×234 with aspect ratio of 7:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.72(W)×74.53(H) mm, outline size of 119.3(W)×91.4(H)×7.8(D) mm, viewing area size of 106.7(W)×78.5(H) mm, with surface treament of Antiglare, net weight of 116±5g. As a TN, Normally White, Transmissive LCM product, PA050XSG can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/30 (Typ.)(Tr/Td) ms.. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. PA050XSG utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL).
We are able to offer AD board for this display to support VGA video input.
Model
PA050XSG
Brand
PVI
Diagonal Size
5.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
320(RGB)×234 79PPI
Configuration
RGB Vertical Stripe
Active Area
102.72(H)×74.53(V) mm
Outline Dim.
119.3(H)×91.4(V) ×7.8(D) mm
Bezel Area
106.7(H)×78.5(V) mm
Treatment
Antiglare
Luminance
400 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
Response Time
15/30 (Typ.)(Tr/Td)
Viewing Angle
70/70/40/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Light Source
CCFL [1 pcs] , 50K hours , W/O Driver
Weight
116±5g
Touch Panel
Without
Interface Type
TFT Specific Analog RGB , 30 pins FPC
Power Supply
3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

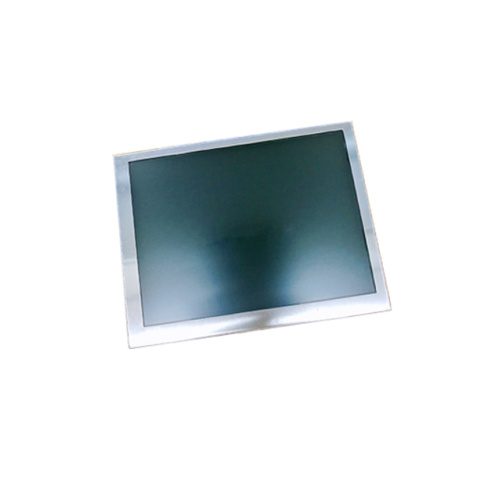

Product Picture:
