Prime View International Co., Ltd. (hereafter called PVI) PA040XS3 is a 4.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 4.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver4.0 which was released out on 3 24 2008, PA040XS3 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 81.12(W)×61.78(H) mm, outline size of 93(W)×73.5(H) mm, viewing area size of 84.32(W)×64.98(H) mm, with surface treament of Antiglare, net weight of 74.0±5.0g. As a TN, Normally White, Transmissive LCM product, PA040XS3 can provides 350 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. PA040XS3 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL).
We are able to offer AD board for this display to support VGA video input.
Panel Model
PA040XS3
Panel Brand
PVI
Panel Size
4.0"
Resolution
320(RGB)×234, 98PPI
Display Area
81.12(W)×61.78(H) mm
Outline Size
93(W)×73.5(H) mm
Brightness
350 cd/m² (Typ.)
Viewing Angle
50/50/15/35 (Typ.)(CR≥10)
Best View on
6 o'clock
Display Colors
Full color
Weight
74.0±5.0g
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
84.32(W)×64.98(H) mm
Surface
Antiglare
Contrast Ratio
350:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
15/25 (Typ.)(Tr/Td)
Lamp Type
4S2P WLED , 10K hours , Without Driver
Touch Screen
Without
Signal Interface
TFT Specific Analog RGB , 30 pins FPC
Input Voltage
3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

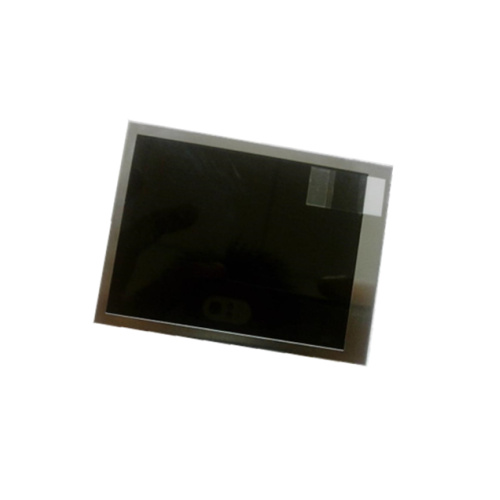

Product Picture:
