PA035XSL PVI 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PA035XSL is a 3.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PA035XSL supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 71.6(W)×52.65(H) mm, outline size of 83.5(W)×63.1(H)×3.9(D) mm, viewing area size of 73.6(W)×54.65(H) mm, with surface treament of Antiglare, net weight of 32.0±5.0g. As a TN, Normally White, Transmissive LCM product, PA035XSL can provides 250 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PA035XSL utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL).
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
PA035XSL |
|
Manufacturer |
PVI |
|
Screen Size |
3.5 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
320(RGB)×234 113PPI |
|
Arrangement |
RGB Delta |
|
Active Area(mm) |
71.6 × 52.65 (H×V) |
|
Outline(mm) |
83.5 × 63.1 × 3.9 (H×V×D) |
|
Bezel Area(mm) |
73.6 × 54.65 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
250 cd/m² (Typ.) |
|
Contrast Ratio |
350 : 1 (Typ.) (TM) |
|
Viewing Angle |
50/50/15/35 (Typ.)(CR≥10) |
|
Response |
15/25 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
Full color |
|
Backlight |
3S2P WLED , 30K hours , No Driver |
|
Mass |
32.0±5.0g |
|
Touchscreen |
Without |
|
Signal Type |
TFT Specific Analog RGB , FPC 30 pins |
|
Voltage Supply |
3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

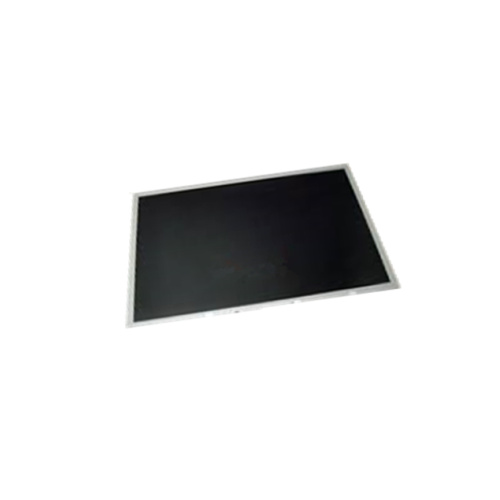

Product Picture:
