PM090WY2 PVI 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PM090WY2 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 8 17 2011, PM090WY2 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198(W)×112.08(H) mm, outline size of 210(W)×131(H) mm, viewing area size of 201.2(W)×115.28(H) mm, with surface treament of Antiglare, net weight of 268±15g. As a TN, Normally White, Transmissive LCM product, PM090WY2 can provides 500 cd/m² display brightness 750:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S14P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. PM090WY2 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/9.9/3.3/18.6/-6.3V (Typ.)(VDD1/VDD2/VCC/VGH/VGL).
We are able to offer AD board for this display to support VGA video input.
|
Model |
PM090WY2 |
|
Brand |
PVI |
|
Diagonal Size |
9.0 inch |
|
Pixel Format |
800(RGB)×480 [WVGA] 104PPI |
|
Active Area |
198(H)×112.08(V) mm |
|
Bezel Area |
201.2(H)×115.28(V) mm |
|
Luminance |
500 cd/m² (Typ.) |
|
View Direction |
6 o'clock |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Support Color |
262K |
|
Weight |
268±15g |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
210(H)×131(V) mm |
|
Treatment |
Antiglare |
|
Contrast Ratio |
750:1 (Typ.) (TM) |
|
Response Time |
5/20 (Typ.)(Tr/Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [3S14P] , 20K hours , W/O Driver |
|
Touch Panel |
Without |
|
Interface Type |
TTL (1 ch, 6-bit) 60 pins FPC |
|
Power Supply |
3.3/9.9/3.3/18.6/-6.3V (Typ.)(VDD1/VDD2/VCC/VGH/VGL) |
|
Environment |
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |

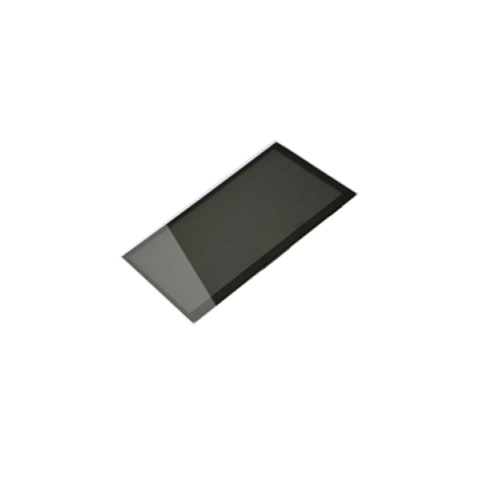

Product Picture:
