Product Description

Prime View International Co., Ltd. (hereafter called PVI) VM070WX1 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 6 22 2010, VM070WX1 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×6.5(D) mm, viewing area size of 156.0(W)×95.0(H) mm, with surface treament of Hard coating, net weight of 170±10g. As a MVA, Normally Black, Transmissive LCM product, VM070WX1 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. VM070WX1 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/12.0/18.0/-8.0/3.3V (Typ.)(VDD/AVDD/VGH/VGL/VCC). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	VM070WX1
Brand	PVI
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)×480 [WVGA] 133PPI
Configuration	RGB Vertical Stripe
Active Area	152.4(H)×91.44(V) mm
Outline Dim.	165(H)×104(V) ×6.5(D) mm
Bezel Area	156.0(H)×95.0(V) mm
Treatment	Hard coating
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/10 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	MVA, Normally Black, Transmissive
Support Color	262K
Light Source	WLED [3S11P] , 20K hours , W/O Driver
Weight	170±10g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit) , 60 pins FPC
Power Supply	3.3/12.0/18.0/-8.0/3.3V (Typ.)(VDD/AVDD/VGH/VGL/VCC)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C

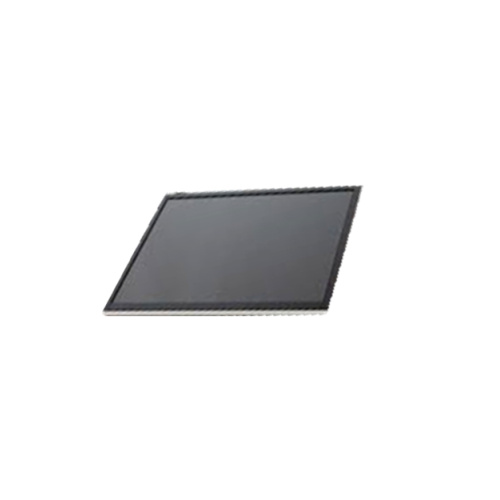

Product Picture:

VM070WX1
