Product Description

Prime View International Co., Ltd. (hereafter called PVI) PM070WL3 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver4.0 which was released out on 1 28 2010, PM070WL3 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 166.3(W)×105.3(H)×11(D) mm, viewing area size of 156.0(W)×95.0(H) mm, with surface treament of Antiglare, net weight of 265±10g. As a TN, Normally White, Transmissive LCM product, PM070WL3 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PM070WL3 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).

We are able to offer AD board for this display to support VGA video input.

Model	PM070WL3
Brand	PVI
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)×480 [WVGA] 133PPI
Configuration	RGB Vertical Stripe
Active Area	152.4(H)×91.44(V) mm
Outline Dim.	166.3(H)×105.3(V) ×11(D) mm
Bezel Area	156.0(H)×95.0(V) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/55 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [3S11P] , 30K hours , W/O Driver
Weight	265±10g
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C

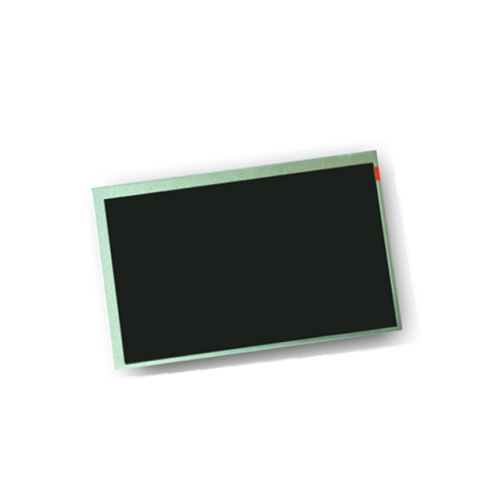

Product Picture:

PM070WL3
