Prime View International Co., Ltd. (hereafter called PVI) PM070WX5 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C .This PVI TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PM070WX5 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×6.5(D) mm, viewing area size of 156.0(W)×95.0(H) mm, with surface treament of Antiglare, net weight of 174±10g. As a TN, Normally White, Transmissive LCM product, PM070WX5 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PM070WX5 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PM070WX5 |
|
Panel Brand |
PVI |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Bezel Opening |
156.0(W)×95.0(H) mm |
|
Outline Size |
165(W)×104(H) ×6.5(D) mm |
|
Surface |
Antiglare |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
60/60/40/55 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
15/25 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
3S11P WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
174±10g |
|
Signal Interface |
TTL (1 ch, 6-bit) , 60 pins FPC |
|
Input Voltage |
3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |

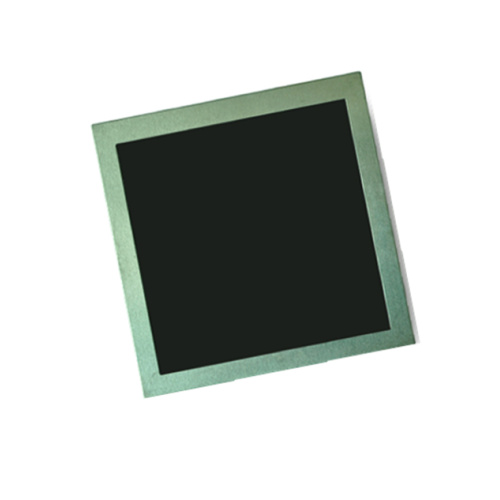

Product Picture:
