AA104SJ02--T1 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA104SJ02--T1 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA104SJ02--T1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×11.6(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, net weight of 580g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA104SJ02--T1 can provides 480 cd/m² display brightness 950:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104SJ02--T1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name
AA104SJ02--T1
Manufacturer
Mitsubishi
Screen Size
10.4 inch
Pixel Number
800(RGB)×600 (SVGA) 96PPI
Active Area(mm)
211.2 × 158.4 (H×V)
Bezel Area(mm)
215.4 × 161.8 (H×V)
Luminance
480 (Typ.)(cd/m²)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Good View at
Symmetry
Color Depth
262K/16.7M 72% NTSC
Mass
580g (Typ.)
Refresh Rate
60Hz
Screen Type
LCM , a-Si TFT-LCD
Arrangement
RGB Vertical Stripe
Outline(mm)
230 × 180.2 × 11.6 (H×V×D)
Treatment
Antiglare
Contrast Ratio
950 : 1 (Typ.) (TM)
Work Mode
SWV, Normally Black, Transmissive
Response
12/12 (Typ.)(Tr/Td) ms
Backlight
WLED , 100K hours , With LED Driver
Touchscreen
4-wire Resistive Touch
Signal Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

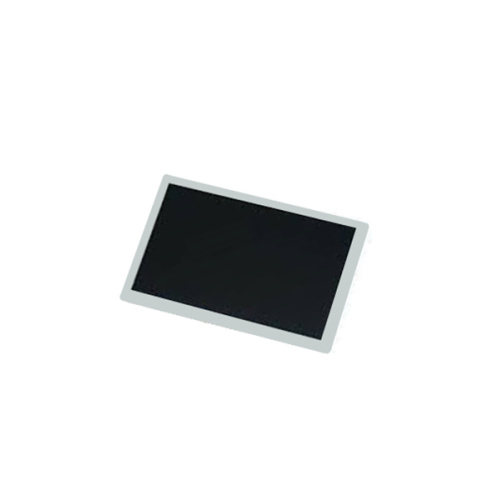

Product Picture:
