AA090TB01--G1 Mitsubishi 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA090TB01--G1 is a 9.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, without touch screen.This Mitsubishi TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA090TB01--G1 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195.84(W)×117.504(H) mm, outline size of 229(W)×146.2(H) mm, viewing area size of 199.4(W)×120.7(H) mm, with surface treament of Clear, net weight of 460g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA090TB01--G1 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA090TB01--G1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA090TB01--G1 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
9.0" |
|
Resolution |
1280(RGB)×768, WXGA, 166PPI |
|
Display Area |
195.84(W)×117.504(H) mm |
|
Outline Size |
229(W)×146.2(H) mm |
|
Brightness |
800 cd/m² (Typ.) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
262K/16.7M 50% NTSC |
|
Frequency |
60Hz |
|
Weight |
460g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
199.4(W)×120.7(H) mm |
|
Surface |
Clear |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Response Time |
12/12 (Typ.)(Tr/Td) |
|
Lamp Type |
2 strings WLED , 100K hours , With LED Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

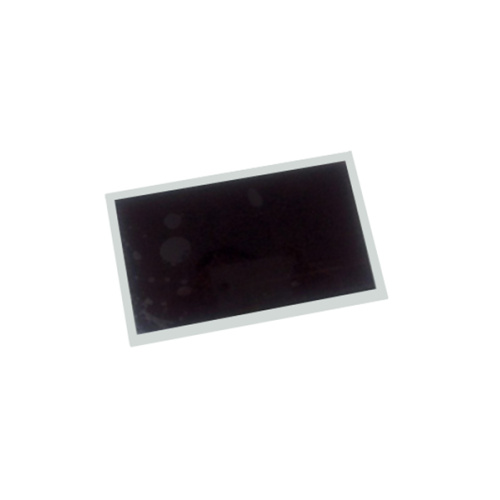

Product Picture:
